STANDARD E-I LAMINATION U-I LAMINATION
CUSTOMISE LAMINATION HIGH VOLTAGE USED LAMINATION
E-T LAMINATION U-TYPE RIVET LAMINATION
L-TYPE LAMINATION


Unit:mm

SIZE

A

B

C

D

E

F

G

H

I

J

K

R

U

EI-28

28

25

8

4

6

17

21

4

EI-30

30

25

10

5

5

15

20

5

EI-35

35

29.5

9.6

5

7.7

19.5

24.5

5

EI-38.4

38.4

32

12.8

6.4

6.4

19.2

25.6

6.4

EI-41
41
33
13
6
8
21
27
6


EI-41(2H)

41

33

13

6

8

21

27

6

27

3

3.2



EI-42

42

35

14

7
7
21
28
7



EI-48

48

40

16

8

8

24

32

8

EI-48(2H)

48

40

16

8

8

24

32

8

32

4

3.5



EI-48(4H)

48

40

16

8

8

24

32

8

40

32

4

4

EI-54

54

45

18

9

9

27

36

9











EI-54(4H)

54

45

18

9

9

27

36

9

36

4.5

3.5



EI-57

57

47.5

19

9.5

9.5

28.5

38

9.5









EI-57(2H)

57

47.5

19

9.5

9.5

28.5

38

9.5

38

4.75

3.8



EI-57(4H)

57

47.5

19

9.5

9.5

28.5

38

9.5

47.5

38

4.75

3.8



EI-57(U)

57

47.5

19

9.5

9.5

28.5

38

9.5





2.75



5.5

EI-60

60

50

20

10

10

30

40

10

EI-60(4H)

60

50

20

10

10

30

40

10

50

40

5

4.5



EI-66

66

55

22

11

11

33

44

11

EI-66(2H)

66

55

22

11

11

33

44

11



44

5.5

4.5



EI-66(4H)

66

55

22

11

11

33

44

11

56

44

5.5

4.5



EI-76.2

76.2

63.5

25.4

12.7

12.7

38.1

50.8

12.7











EI-76.2(4H)

76.2

63.5

25.4

12.7

12.7

38.1

50.8

12.7

64

50.8

6.35

5



EI-78(4H)

78

65

26

13

13

39

52

13

65

52

6.5

4.5



EI-85.8

85.8

71.5

28.6

14.3

14.3

42.9

57.2

14.3











EI-85.8(4H)

85.8

71.5

28.6

14.3

14.3

42.9

57.2

14.3

71

57.2

7.15

6



EI-95.25

95.25

79.37

31.75

15.87

15.87

47.62

63.5

15.87











EI-96(4H)

96

80

32

16

16

48

64

16

79

64

8

6



EI-105(4H)

105

87.5

35

17.5

17.5

52.5

70

17.5

87

70

8.75

6



EI-114(4H)

114

95

38

19

19

57

76

19

95

76

9.5

7



EI-133.2(4H)

133.2

111

44.4

22.2

22.2

66.6

88.8

22.2

111

88.8

11.1

7



EI-152.4(4H)

152.4

127

50.8

25.4

25.4

76.2

101.6

25.4

127

101.6

12.7

8



3P
EI-152.5(6H)

152.5

137.25

30.5

30.5

30.5

76.25

106.75

30.5

122

106.75

15.25

7.5



EI-162(4H)

162

135

54

27

27

81

108

27

135

108

13.5

8.5



EI-171(4H)

171

142.5

57

28.5

28.5

85.5

114

28.5

143

114

14.25

8.5



EI-190(4H)

190

158.4

63.3

31.65

31.7

95

126.7

31.7

171

139.4

9.5

9



3P
EI-190(6H)

190

171

38

38

38

95

133

38

152

133

19

9



EI-228(4H)

228

190

76

38

38

114

152

38

209

171

9.5

9(Offset Hole)



3P
EI-228(6H)

228

205.2

45.6

45.6

45.6

114

159.6

45.6

182.4

159.6

22.8

9



3P
EI-265(6H)

265

241.5

52

52

54.5

132.5

187

54.3

213

187

27.25

10



3P
EI-305(6H)

305

274.5

61

61

61

152.5

213.5

61

244

213.5

30.5

10.3



3P
EI-375(6H)

375

337.5

75

75

75

187.5

262.5

75

300

262.5

37.5

10

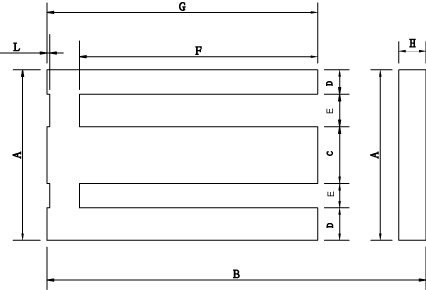

Unit:mm
SIZE
A
B
C
D
E
F
G
H
I
J
L
M
K
R
EI-228L
228
319.2
45.6
45.6
45.6
228
273.6
45.6
-
-
-
-
-
-
EI-265L
265
374
52
52
54.5
264.9
319.5
54.5
-
-
0.1
-
-
-
EI-305L
305
427
61
61
61
305
366
61
-
-
-
-
-
-
